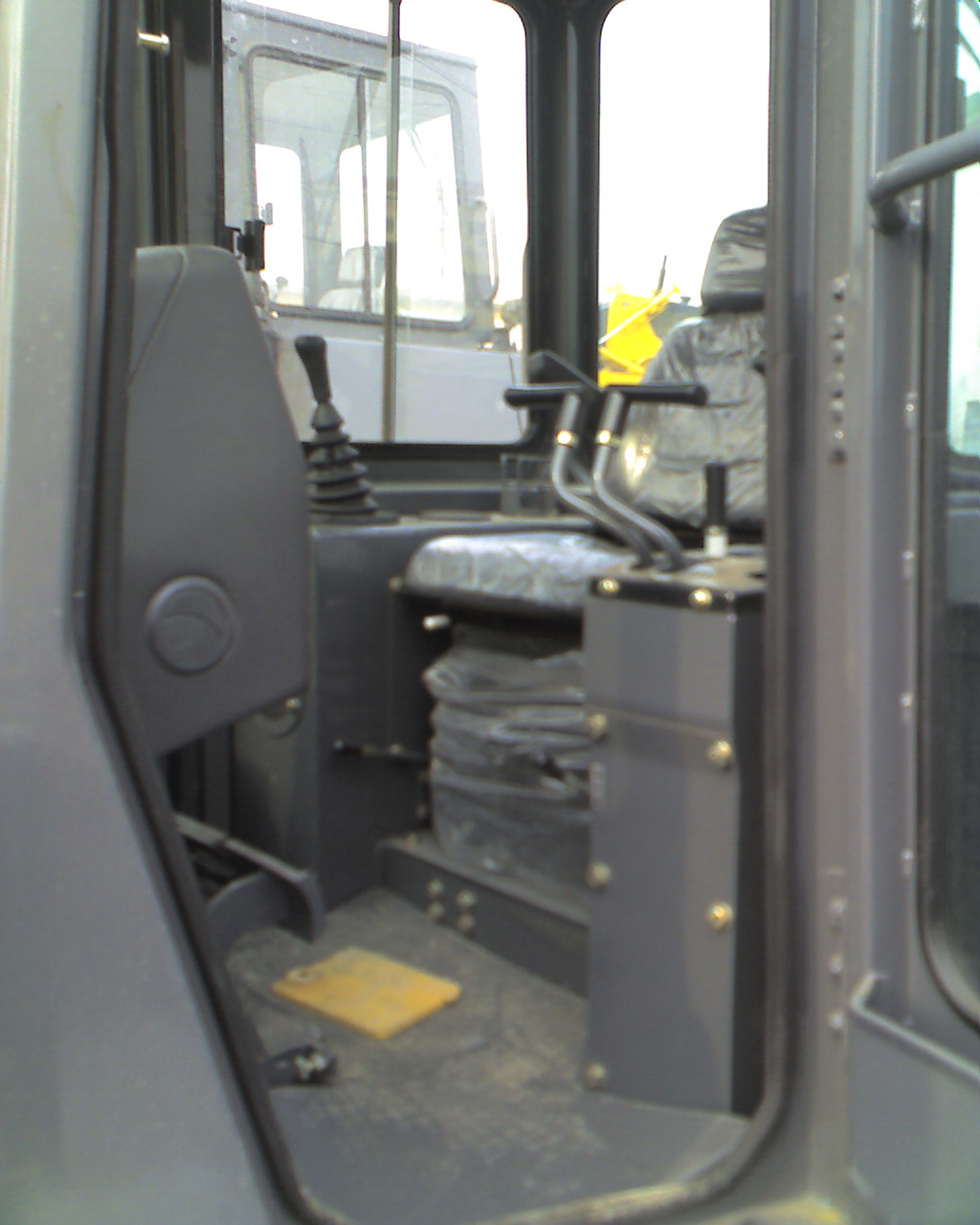

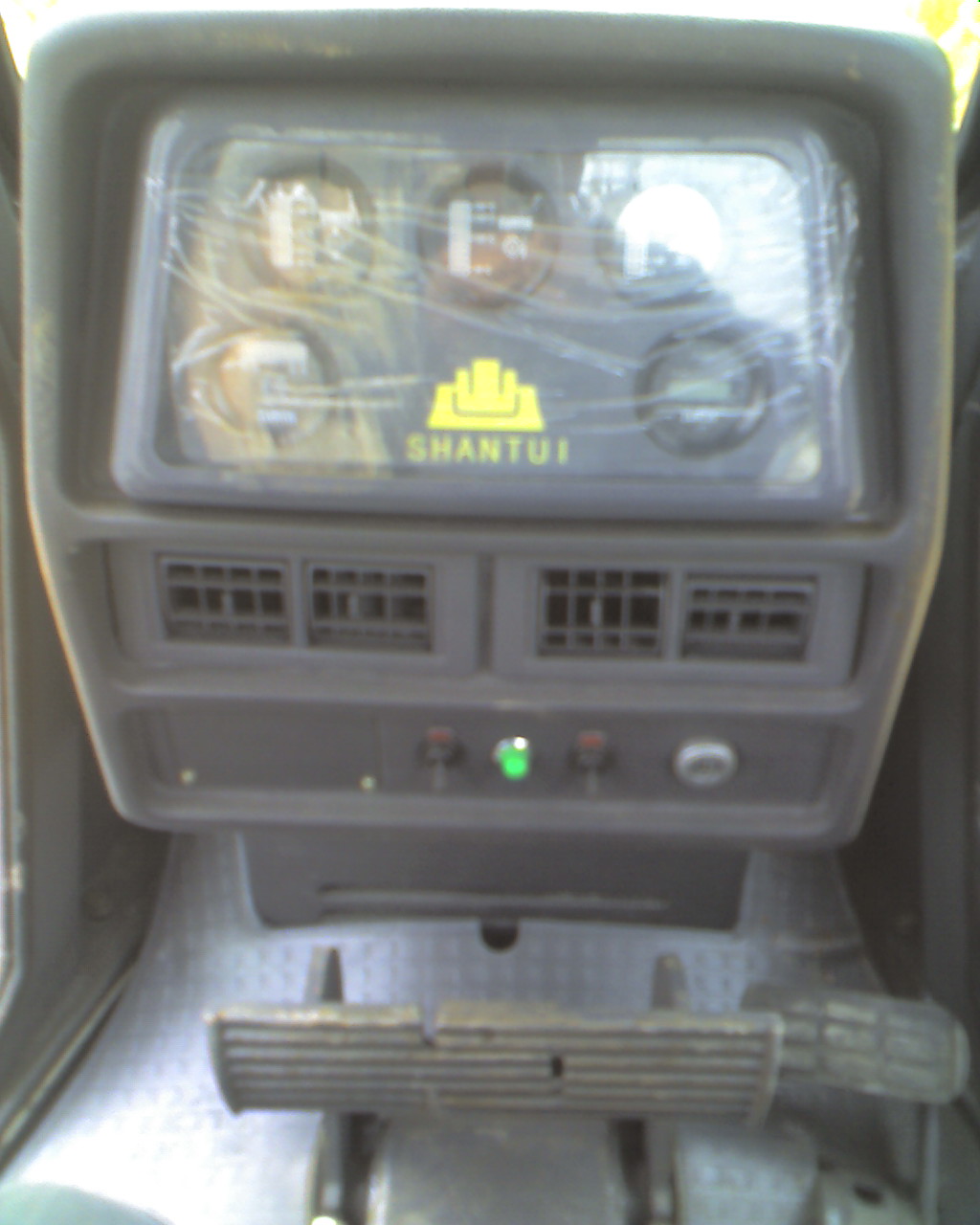

SD series 80 to 320hp bulldozer specification
80hp Specifications of SD8 Bulldozer
|
DIMENSIONS AND OPERATION SPECIFICATIONS
|
|
|
Horsepower
|
60kw/2350rpm
|
|
Lengt×Width×Height
|
3921×2553×2735mm
|
|
Ripper not included
|
yes
|
|
Operating weight(ripper not included)
|
7.651t
|
|
Track gauge
|
1450mm
|
|
Ground length and ground pressure
|
2185/0.038Mpa
|
|
Forward speed
|
0-2.53 0-4.55 0-7.57
|
|
Reverse speed
|
0-2.76 0-4.96 0-8.26
|
|
Max.drop below ground of blade
|
370
|
|
Max.liftheight of blade
|
865
|
|
Grade ability
|
30o
|
|
Dozing capacity(straight tilt blade)
|
2.02
|
|
Engine model
|
LR4105ZG65
|
|
Number of carrier roller(each side)
|
1
|
|
Number of track roller(each side)
|
6
|
|
Number of track shoe(each side)
|
41
|
|
pitch
|
154.25
|
|
Blade type
|
|
|
Blade:L×H srtaight tilta
|
2553×890
|
|
130hp Specifications of SD13 Bulldozer
|
|
ENGINE
|
|
|
Model
|
D6114ZG4B
|
|
Type
|
In-line,water cooled 4-cycle,overhead valve direct injection,turbocharged
diesel
|
|
Rated Power
|
95.KW/1900rpm
|
|
Cylinder Number-Bore×Stroke
|
6-114×135
|
|
Max.Torque
|
674N.m/1300rpm
|
|
Piston displacement
|
8.27L
|
|
Rated Fuel consumption
|
<228g/KWh
|
|
TRAVEL SPEED
|
||
|
Forward(KM/H)
|
1st
|
3.2
|
|
2nd
|
5.9
|
|
|
3rd
|
9.8
|
|
|
Reverse(KM/H)
|
1st
|
3.9
|
|
2nd
|
7.1
|
|
|
3rd
|
11.9
|
|
|
OVERALL DIMENSIONS
|
|
|
Length
|
4685mm(including drawbar)
|
|
Width
|
3185mm
|
|
Height
|
2950mm
|
|
Track gauge
|
1880mm
|
|
Length of grounding
|
2365mm
|
|
Ground Clearance
|
320mm
|
|
Width of track shoes
|
460mm
|
|
HYDRAULIC SYSTEM
|
|
|
Pump discharge
|
180L/min
|
|
Pump displacement
|
80ml/r
|
|
Oil pressure
|
14Mpa
|
|
Displacement of Transmission Pump
|
40ml/r
|
|
Discharge of Transmission Pump
|
77.1L/min
|
|
Displacement of Steering Pump
|
28ml/r
|
|
Discharge Steering Pump
|
54.4L/min
|
|
Revolution
|
1900rpm
|
|
WORKING EQUIPMENT AND ATTACHMENT
|
|
|
Blade width
|
3185mm
|
|
Blade Height
|
1090mm
|
|
Max tilt adjustment
|
400mm
|
|
Max.Lifting height
|
930mm
|
|
Max.Cutting Depth
|
590mm
|
|
Cutting Angle
|
55o
|
|
Cutting Depth
|
467mm
|
|
Digging Lifting height
|
559mm
|
|
TRANSMISSION
|
|
|
Torque converter
|
1-stage,1-phase,3-element
|
|
Transmission(F3-R3)
|
Planetary gear,multi-disc clutch,hydraulically connected,forced
lubrication
|
|
Main Drive
|
Spiral bevel gear,splash lubrication,single-stage speed reduction
|
|
Steering Cluth
|
Wet,multi-disc,spring loaded,hydraulically separated,foot and hydraulic
control
|
|
Final drive
|
2-stage speed reduction of spur gear,splash lubrication
|
|
UNDERCARRIAGE SYSTEM
|
|
|
Type
|
Swing type of sprayed beam,suspend structure of equalizer bar
|
|
Carrier rollers(each side)
|
2
|
|
Track rollers
|
6
|
|
Pitch
|
190mm
|
|
Number of track Link
|
38
|
|
OTHERS
|
|
|
Blade Capacity
|
3.7M
|
|
Weight
|
14000kg
|
|
Ground Pressure
|
0.064MPa
|
|
Pulling Force
|
112KN(11.2T)
|
|
Gradeability
|
30o
|
|

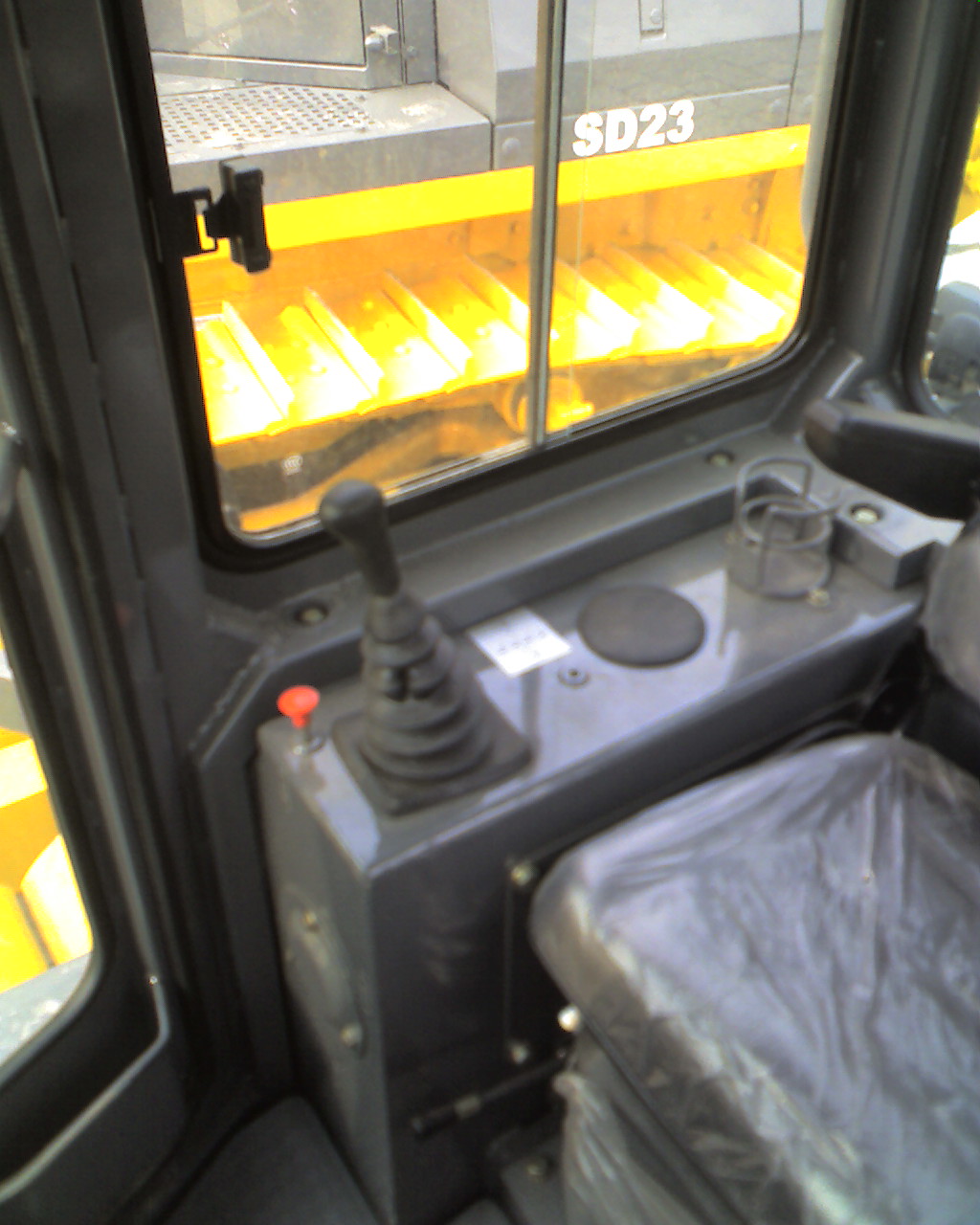

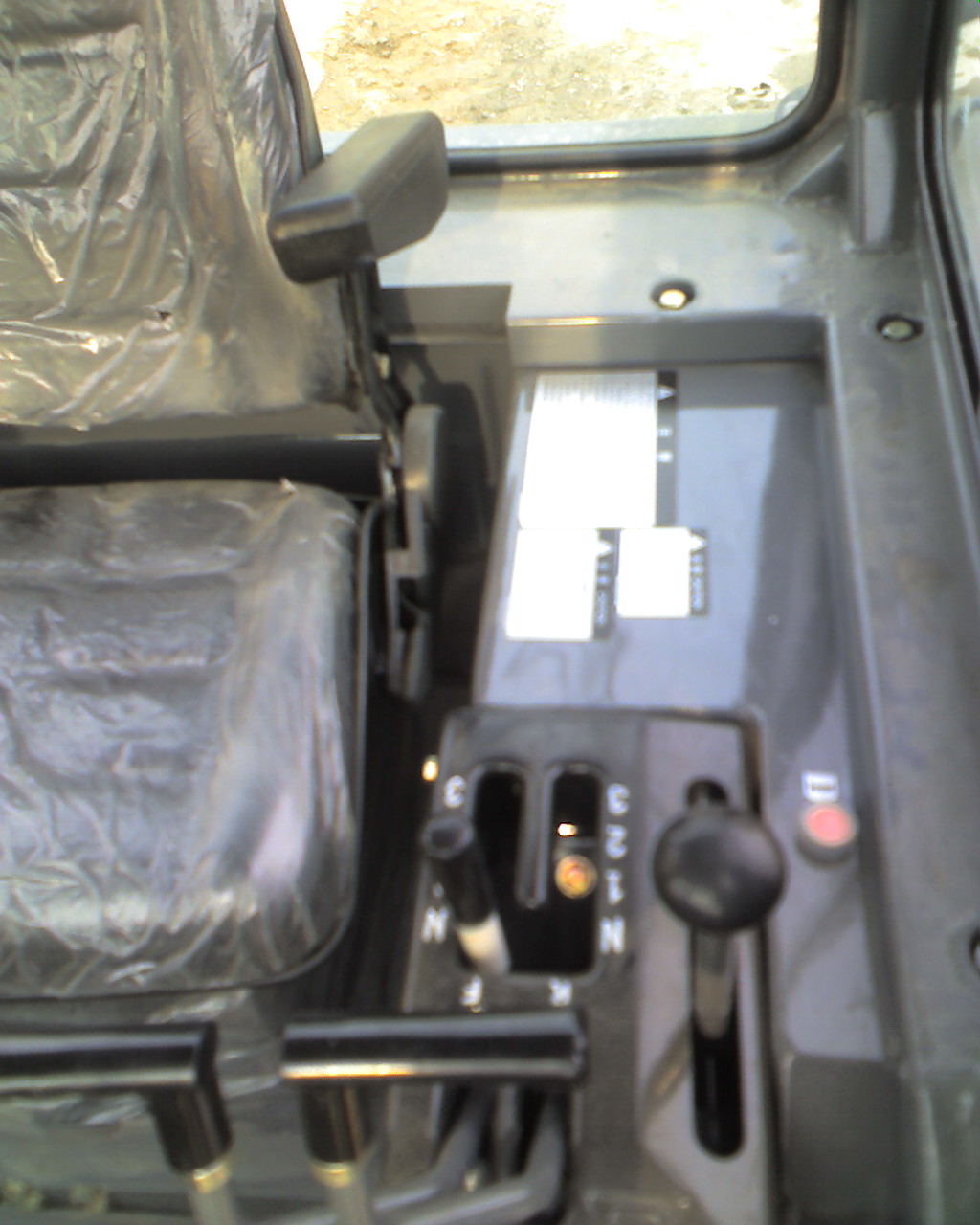

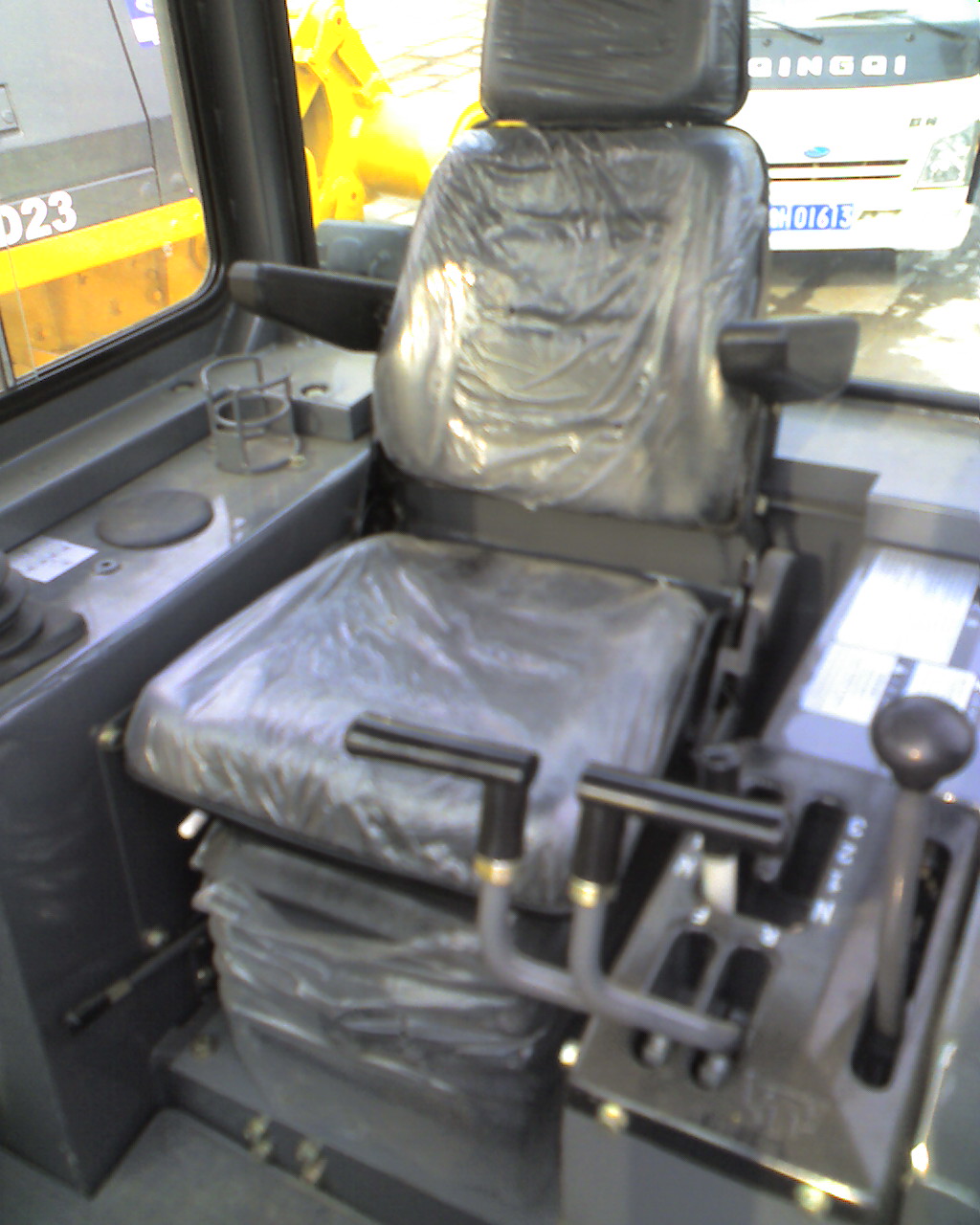

220hp Specifications of SD22 Bulldozer
|
|

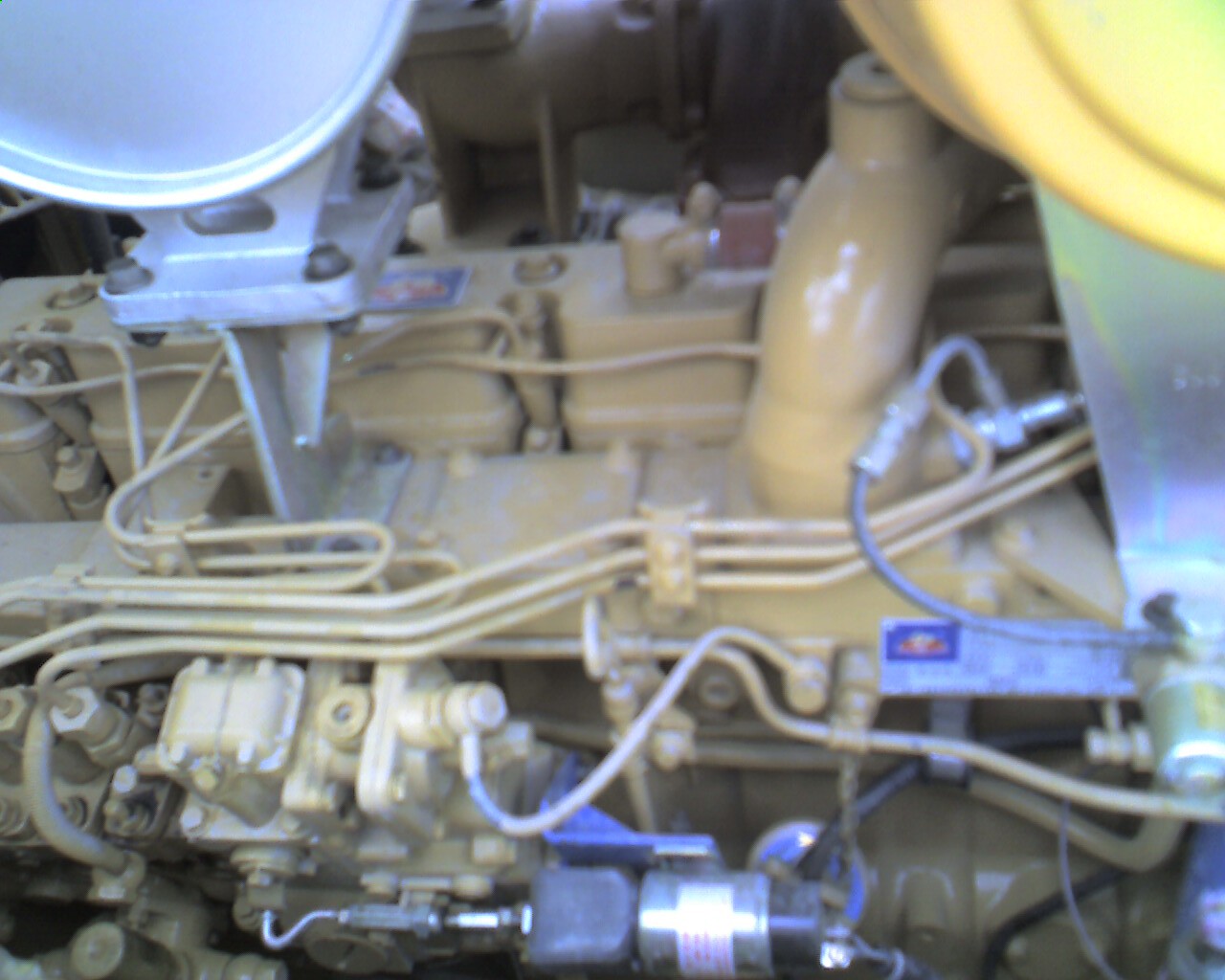

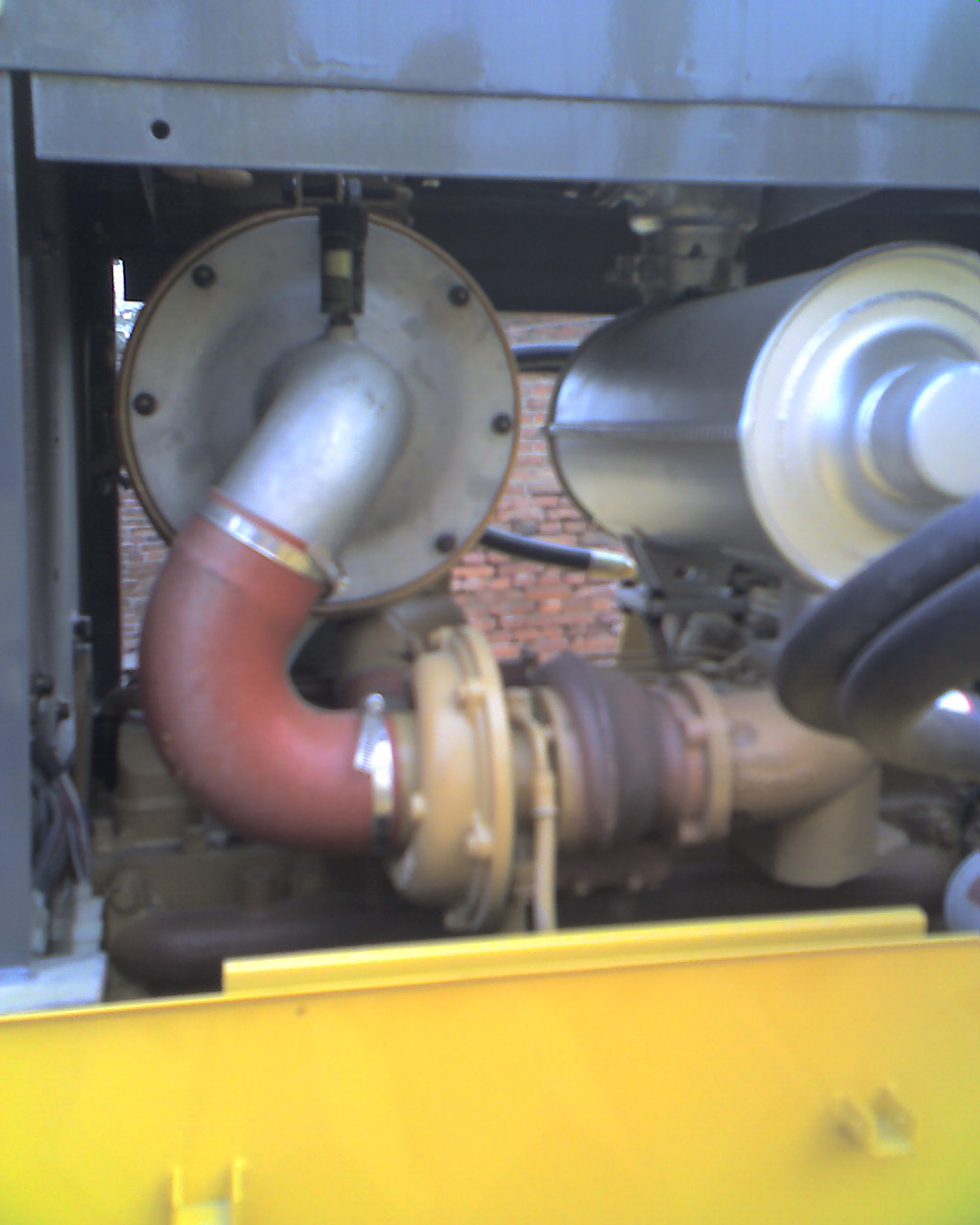

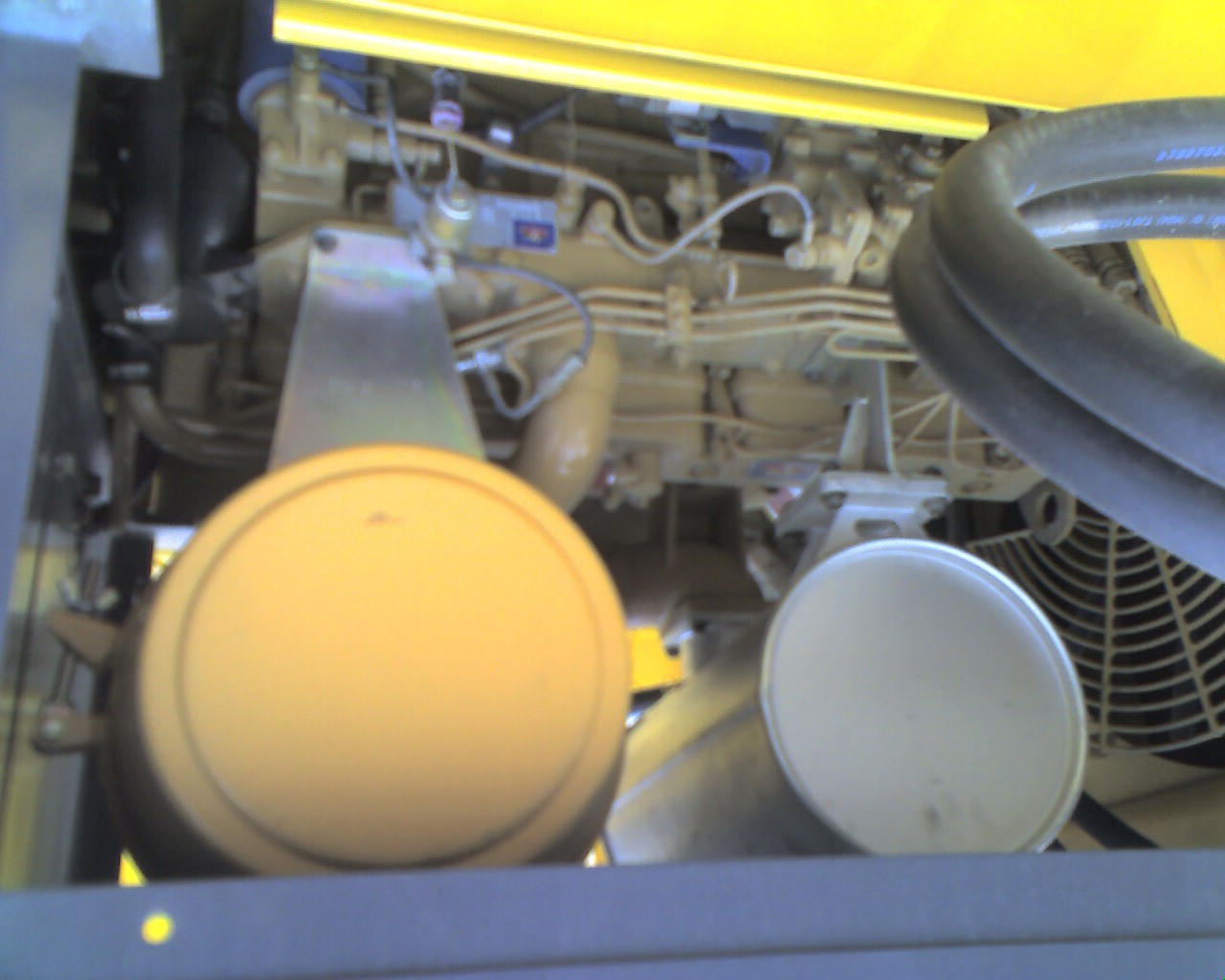

ENGINE
|
|
|
Model
|
NT855-C280(BCLLL)Cummins
|
|
Type
|
In-line,water cooled 4-cycle,overhead valve direct injection,turbocharged
diesel
|
|
Rated Power
|
162KW/1800rpm
|
|
Cylinder Number-Bore×Stroke
|
6-139.7×152.4
|
|
Max.Torque
|
1030NM/1250rpm
|
|
Piston displacement
|
14.01L
|
|
Min.fuel consumption
|
205g/KW.h
|
|
TRAVEL SPEED
|
||
|
Forward(KM/H)
|
1st
|
0-3.6
|
|
2nd
|
0-6.6
|
|
|
3rd
|
0-11.2
|
|
|
Reverse(KM/H)
|
1st
|
0-4.3
|
|
2nd
|
0-7.7
|
|
|
3rd
|
0-13.2
|
|
|
Dozer
|
Straight-tilt
|
Angle
|
Udozer
|
|
Min.ground clearance(mm)
|
405
|
405
|
405
|
|
Operating weight(kg)
|
23450
|
23670
|
24020
|
|
Ground presure(MP)
|
0.077
|
O.O77
|
0.078
|
|
Min.turning radius(m)
|
3.3
|
3.3
|
3.3
|
|
Gradeability(o)
|
30
|
30
|
30
|
|
Track gauge(mm)
|
2000
|
2000
|
2000
|
|
Dozing capacity(m3)
|
6.4
|
4.7
|
7.5
|
|
Efficiency(m/H)
|
330
|
245
|
365
|
|
Blade width(mm)
|
3725
|
4365
|
3800
|
|
Blade Height(mm)
|
1315
|
1055
|
1343
|
|
Max.drop below groud(mm)
|
540
|
530
|
540
|
|
Max.tilt adjustment(mm)
|
>735
|
>500
|
>755
|
|
Weight(kg)
|
3630
|
3850
|
4196
|
|
TRANSMISSION
|
|
|
Torque converter
|
1-stage,1-phase,3-element
|
|
Transmission(F3-R3)
|
Planetary gear,multi-disc clutch,hydraulically connected,forced
lubrication
|
|
Main Drive
|
Spiral bevel gear,splash lubrication,single-stage speed reduction
|
|
Steering Cluth
|
Wet,multi-disc,spring loaded,hydraulically separated,hand and hydraulic
control
|
|
Final drive
|
2-stage speed reduction of spur gear,splash lubrication
|
|
UNDERCARRIAGE SYSTEM
|
|
|
Type
|
Swing type of sprayed beam,suspend structure of equalizer bar
|
|
Carrier rollers(each side)
|
2
|
|
Track rollers
|
6
|
|
Width of track shoes
|
560mm
|
|
Pitch
|
216mm
|
|
Number of track Link
|
38
|
|
POWER TAKE OFF SHAFT
|
|
|
Location
|
At the middle of the back of steering case
|
|
Revolution
|
1800rpm
|
|
HYDRAULIC SYSTEM
|
|
|
Max.pressure
|
14MPa
|
|
Pump type
|
gear pump
|
|
Discharge
|
262L/min(1800rpm)(at revolution of 1800rpm)
|
|
Bore of working cylinder×Number
|
120mm(double-acting type)
|
|
160hp Specifications of SD160B Bulldozer
|
|
MEASUREMENT(SIZE)
|
|
|
L×W×H
|
5140×3970×3032
|
|
Track gauge(mm)
|
1880
|
|
Track ground length(mm)
|
2430
|
|
Ground clearance(mm)
|
400
|
|
Width of track shoes(mm)
|
510
|
|
Pith(mm)
|
203
|
|
Ground pressure(Mpa)
|
0.067
|
|
Max.gradeability(o)
|
30
|
|
Min.turning
|
4466
|
|
TRAVEL SPEED
|
||
|
Forward(KM/H)
|
1st
|
0-3.29
|
|
2nd
|
0-5.82
|
|
|
3rd
|
0-9.63
|
|
|
Reverse(KM/H)
|
1st
|
0-4.28
|
|
2nd
|
0-7.59
|
|
|
3rd
|
0-12.53
|
|
|
BLADE
|
|
|
Dozing capacity (m3)
|
4.4
|
|
Max.lift above ground(mm)
|
1110
|
|
Max.titlt drop below ground(mm)
|
530
|
|
Max.tilt adjustment(mm)
|
400
|
|
ENGINE
|
|
|
Model
|
WD615T-3A
|
|
Type
|
In-line,water cooled 4-cycle,overhead valve direct injection
|
|
Rated Power
|
120KW
|
|
Rated revolution
|
1850r/min
|
|
Cylinder Number-Bore×Stroke
|
6-126×130mm
|
|
Max.Torque
|
764NM
|
|
Min.fuel consumption
|
214g/KW.h
|
|
Mode of starting
|
Electrical starting
|
|
WORKING EQUIPMENT
|
|
|
Ripper Type
|
3 shanks
|
|
Max.digging depth(mm)
|
572
|
|
Blade type
|
straight-tilt dozer
|
|
Width of dozer(mm)
|
3388
|
|
Height of dozer(mm)
|
1149
|
|
HYDRAULIC SYSTEM
|
|||
|
|
SPEED AND CONVERTER
|
STEERING
|
WORKING EQUIPMENT
|
|
Pump type
|
Gear pump
|
Gear pump
|
Gear pump
|
|
Pump revolution
|
2025
|
2025
|
2167
|
|
System pressure
|
2
|
2
|
14
|
|
System discharge
|
81
|
63
|
243
|
|
TRANSMISSION
|
|
|
Torque converter
|
1-stage,1-phase,3-element
|
|
Transmission(F3-R3)
|
Planetary gear,multi-disc clutch,hydraulically connected,forced
lubrication
|
|
Main Drive
|
Spiral bevel gear,splash lubrication,single-stage speed reduction
|
|
Steering Cluth
|
Wet,multi-disc,spring loaded,hydraulically separated,foot and hydraulic
control
|
|
Final drive
|
2-stage speed reduction of spur gear,splash lubrication
|
|
UNDEERCARRIAGE EQUIPMENT
|
|
|
Type
|
Sprayed beam,suspended structure of equalizer
|
|
Carrier rollers(each side)
|
2
|
|
Track rollers(each side)
|
6
|
|
Number of shoes(each side)
|
37
|
|
320hp Specifications of SD320B Bulldozer
|
|
ENGINE
|
|
|
Model
|
CUMMINS NTA-855C-360
|
|
Type
|
Tubochayged,intercooled,in-line,4-cycle
|
|
Cylinder Number-Bore×Stroke
|
6-139.7×152.4mm
|
|
Piston displacement
|
14010ml
|
|
Flywheel horsepower
|
235kw(320HP)
|
|
Rated Revolution
|
2000r/min
|
|
Max torque
|
1440N.m/1400r/min
|
|
Fuel consumption
|
2000r/min
|
|
Start motor
|
24v,11kw
|
|
Alternator
|
28v,35A
|
|
Battery
|
24v(12v×2)-195AH
|
|
Fuel system
|
PT pump head valve direct injection
|
|
Cooling system
|
Forced circulation by centrifugal pump,busher type fan.
|
|
Air cleaner
|
Dry,horizontal type with air cleaner
|
|
TRANSMISSION
|
|
|
Torque converter
|
1-stage,1-phase,3-element
|
|
Cooling method
|
Wate-cooled
|
|
Transmission
|
Power-shift planetary gear transmission
|
|
Type
|
Planetary gear,multiple-disc clutch,hydraulically connected forced
lubrication by gear pump
|
|
Main-drive shaft
|
Spiral bevel gear,splash lubrication
|
|
TRAVEL SPEED
|
||
|
Forward(KM/H)
|
1st
|
0-3.7
|
|
2nd
|
0-6.8
|
|
|
3rd
|
0-11.8
|
|
|
Reverse(KM/H)
|
1st
|
0-4.5
|
|
2nd
|
0-8.2
|
|
|
3rd
|
0-13.7
|
|
|
FINAL DRIVE
|
|
|
Final drive
|
2-stage spur gear,speed reduction,splash lubrication
|
|
UNDERCARRIAGE SYSTEM
|
|
|
Suspension
|
Swing type of sprayed beam,suspended structure of equalizer bar
|
|
Number of carrier rollers
|
2(each side)
|
|
Number of track rollers
|
7(each side)
|
|
Number of idler
|
1(each side)
|
|
TRACK SHOE
|
|
|
Type
|
Assembled type,single grouser
|
|
Pitch
|
228.6mm
|
|
Width
|
560mm
|
|
Grouser heihgt
|
80mm
|
|
Number of track shoes
|
41(each side)
|
|
Track gauge
|
2140mm
|
|
Ground pressure
|
0.105MPa
|
|
HYDRAULIC CONTROL SYSTEM
|
|
|
Maximum pressure
|
14MPa(140kg f/cm2)
|
|
Type
|
Gear pump
|
|
Displacement
|
335.5L/min
|
|
Control valve type
|
Guiding valve
|
|
Hydraulic bank
|
Control valve and oil filter inner-installed type
|
|
STEERING SYSTEM
|
|
|
Steering clutch
|
Wet type,multiple-disc,spring loaded,hydraulically separated,hand and
hydraulic control operated
|
|
Steering brake
|
Wet type,band brake,foot operated(with hydraulic booster,interconnected
with clutch)
|
|
COOLANT AND LUBRICANT CAPACITY
|
|
|
Coolant water
|
121L
|
|
Fuel tank
|
600L
|
|
Engine
|
47L
|
|
Bevel gear case
|
185L
|
|
Final drive case(each side)
|
55L
|
|
Hydraulic tank
|
164L
|
|
WORKING EQUIPMENT AND ATTACHMENT
|
|
|
Straight-tilt dozer
|
Hydraulically actuated with servo valve
|
|
Blade supporting method
|
Brace type tilt cylinder on right side
|
|
Width
|
4130mm
|
|
Height
|
1590mm
|
|
Max.lift above ground
|
1560mm
|
|
Max.drop below ground
|
560mm
|
|
Max.tilt adjustment
|
1000mm
|
|
3-SHANK RIPPER
|
|
|
Max.digging depth
|
835mm
|
|
Max.lift above ground
|
890mm
|
|
Standard digging angle
|
45o
|
|
Max.digging depth of Single ripper
|
1240mm
|
|
Max.lift above ground
|
965m
|
