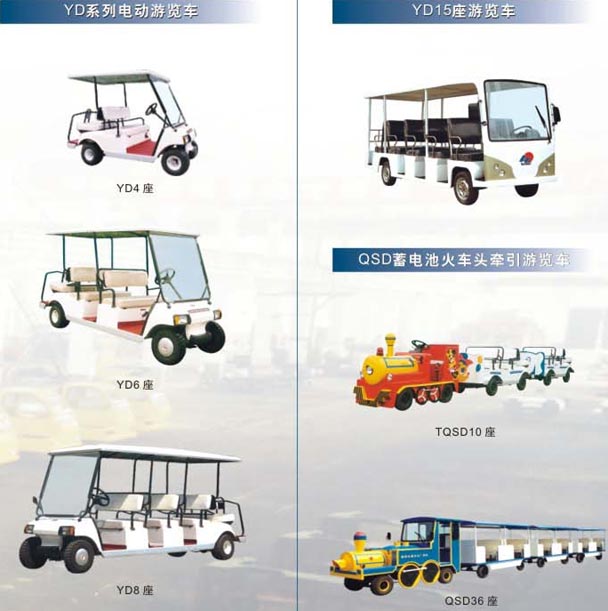

Battery powered tourist coach
4 seats FOB China $4500
15 seats FOB China $8500
20 seats FOB China $11250
 |
 |
|
YD8
|
YD6
|
 |
 |
|
YD4
|
Golf cart 4 seats
FOB China $5250
 |
 |
|
|
|
 |
 |
 |
 |
|
|
|
 |
 |
 |
 |
|
|
|
 |
 |
| YD8A Battery Tourist Coach's Technical Specifications | |
| Rated passengers (including driver) | 8 persons |
| Rated capacity | 600kg |
| travel speed without load | 20km/h |
| with load | 18km/h |
| Grade ability (with load) | 15% |
| Min ground clearance | 100mm |
| Dimensions (L x W x H) | 4270*1130*1830 |
| Min turning radius | 6000mm |
| Max braking distance (at speed of 10km/h) | 2.5m |
| Wheel base | 3350mm |
| Track (front/rear) | 920/1000mm |
| Dead weight | 600kg |
| Storage battery model | D-180 |
| capacity | 180(5h work system) Ah |
| voltage | 48v |
| Motor (power/voltage) | 2.2/48kw/v |
| Tires front | 5.00-8 |
| rear | 18*8.5-86layers(importel) |
| Electrical Control Way | Change speed by Chopping wave |
| Brake Way | 4 wheel machine brake |
| YD6A Battery Tourist Coach's Technical Specifications | |
| Rated passengers (including driver) | 6 persons |
| Rated capacity | 450kg |
| travel speed without load | 20km/h |
| with load | 18km/h |
| Grade ability (with load) | 15% |
| Min ground clearance | 100mm |
| Dimensions (L x W x H) | 3420*1130*1830 |
| Min turning radius | 4800mm |
| Max braking distance (at speed of 10km/h) | 2.5m |
| Wheel base | 2530mm |
| Track (front/rear) | 880/1000mm |
| Dead weight | 520kg |
| Storage battery model | D-180 |
| capacity | 180(5h work system) Ah |
| voltage | 48v |
| Motor (power/voltage) | 2.2/48kw/v |
| Tires front | 5.00-8 |
| rear | 18*8.5-86layers(importel) |
| Electrical Control Way | Change speed by Chopping wave |
| Brake Way | 4 wheel machine brake |
| YD4A Battery Tourist Coach/Golf cart Technical Specifications | |
| Rated passengers (including driver) | 4 persons |
| Rated capacity | 300kg |
| travel speed without load | 20km/h |
| with load | 18km/h |
| Grade ability (with load) | 15% |
| Min ground clearance | 100mm |
| Dimensions (L x W x H) | 2840*1130*1830 |
| Min turning radius | 3600mm |
| Max braking distance (at speed of 10km/h) | 2.5m |
| Wheel base | 1630mm |
| Track (front/rear) | 920/1000mm |
| Dead weight | 470kg |
| Storage battery model | D-180 |
| capacity | 180(5h work system) Ah |
| voltage | 36v |
| Motor (power/voltage) | 1.5/36kw/v |
| Tires front | 5.00-8 |
| rear | 18*8.5-86layers(importel) |
| Electrical Control Way | Change speed by Chopping wave |
| Brake Way | 2 rear wheel machine brake |
Packing
| Model | Dimension | Volume |
| YD8A/YD8B | 4.27m x 1.13m x 1.83m | 8.83m3 |
| YD6A/YD6B | 3.42m x 1.13m x 1.83m | 7.07m3 |
| YD4A/YD4B | 2.84m x 1.13m x 1.83m | 5.87m3 |
