China Best Products Front End Loader Specification

　

JM/ZL-20 Front End Loader(18-28hp)
Max. lift height (cm/inch) 201/80.4
Bucket width 50"
Lift capacity of full height (kg/lb) 400/880
rated bucket capacity(m3) 0.2

　

　

JM/ZL-30 Front End Loader(30-35hp)

Max. lift height (cm/inch) 246/98.5
Bucket width 60"
Lift capacity of full height (kg/lb) 475/1050
rated bucket capacity(m3) 0.25

JM/ZL-40 Front End Loader(40-50hp)

Max. lift height (cm/inch) 200/80
Bucket width 60"
Lift capacity of full height (kg/lb) 630/1386
rated bucket capacity(m3) 0.36

　

JM/ZL-60 Front End Loader(55hp)

Max. lift height (cm/inch) 218/87.2
Bucket width 60"
Lift capacity of full height (kg/lb) 700/1540
rated bucket capacity(m3) 0.38

　

CFloader for CF554 and CF604

2.2x1.3x1.53

optional:

pallet fork $500

quick disconnect  $400

log clamp $500

integrated blade $500

lift $500

bucket with cap $500

　

4 in 1 loader for Jinma, Dongfeng, Taishan, Foton, Changzhou, Jiangling tractors

MODEL LD200K
(4 in 1) 		LD250K
(4 in 1) 		LD300K
(4 in 1)
DIMENSIONS (L x W x H) 2120x1381x1370mm 2120x1381x1520mm 2120x1381x1670mm
STRUCTURE WEIGHT 420kg 460kg 500kg
BUCKET WIDTH 137cm 152cm 167cm
BUCKET CUBAGE 0.2m3 0.22m3 0.24m3
CARRYING CAPACITY 400kg 440kg 480kg
LIFT HEIGHT 2.58m 2.58m 2.58m
UNLOADING HEIGHT 1.99m 1.99m 1.99m
UNLOADING DISTANCE 0.25m 0.25m 0.25m
LIFT TIME 3s 3s 3s
POWER REQUIRED 20~25hp 25~30hp 30~35hp

4 in 1 loader for Jinma tractor

MODEL LDJM254 LDJM284 LDJM254K
(4 IN 1)		 LDJM284K
(4 IN 1)
DIMENSIONS (L x W x H) 2120x1381x1370mm 2120x1381x1370mm 2120x1381x1370mm 2120x1381x1370mm
STRUCTURE WEIGHT 400kg 400kg 420kg 420kg
BUCKET WIDTH 137cm 137cm 137cm 137cm
BUCKET CUBAGE 0.2m3 0.2m3 0.2m3 0.2m3
CARRYING CAPACITY 400kg 400kg 400kg 400kg
UNLOADING HEIGHT 1.99m 1.99m 1.99m 1.99m
UNLOADING DISTANCE 0.25m 0.25m 0.25m 0.25m
LIFT HEIGHT 2.58m 2.58m 2.58m 2.58m
LIFT TIME 3s 3s 3s 3s
POWER REQUIRED 20~25hp 20~25hp 20~25hp 20~25hp

4 in 1 loader for Taishan tractors

MODEL LDTS254 LDTS354 LDTS254K
(4 IN 1)		 LDTS354K
(4 IN 1)
DIMENSIONS (L x W x H) 2120x1381x1370mm 2120x1381x1520mm 2120x1381x1370mm 2120x1381x1520mm
STRUCTURE WEIGHT 400kg 440kg 440kg 480kg
BUCKET WIDTH 137cm 152cm 137cm 152cm
BUCKET CUBAGE 0.2m3 0.22m3 0.22m3 0.22m3
CARRYING CAPACITY 400kg 440kg 400kg 440kg
UNLOADING HEIGHT 1.99m 1.99m 1.99m 1.99m
UNLOADING DISTANCE 0.25m 0.25m 0.25m 0.25m
LIFT HEIGHT 2.58m 2.58m 2.58m 2.58m
LIFT TIME 3s 3s 3s 3s
POWER REQUIRED 20~25hp 25~30hp 25~30hp 25~30hp

　

　

1 inch = 2.54cm

1 cubic meter = 35.31 cubic feet

Foton Front End loader Specifications
　
Name
Front loader 30-40 hp
Front loader 50-70 hp
Type
TZ-4
ZC-8
Loading Weight (kg)
400
800
Capacity (m3)
0.23
0.42
Unloading Height (m)
2.2
2.1
Unloading Distance (mm)
800
1100

Hydraulic Pump

CB316 CB316

front loader for FT754

bucket capacity:1.1m3, bucket length:1.7m,lifting height:2.7m.

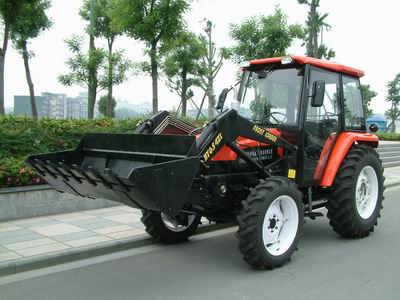

SH Front Loader
　
Product Photo
  Product Information
Product Description: 　
Technical parameter :
Model
ZL
Bucket Cubage
0.33 ( paperbound ) / 0.35 ( stack )
Bucket Width
1750 mm
*Lift capacity to Full Height
6.69 kN ( 700kg)
Max. Dump Angle (D)
45＜
Overall Height in Carry Position (H)
2500 mm
Distance of Uninstall
385 mm
Angle of Receiving
21＜  ( prostration ) / 30 ＜( transfer )
Depth of Excavation
200 mm
Distance of Brake
5.3 mm
Flow Rate
38.4 L / min
Pressure Unlocking for safely Valve
15.68 Mpa
Approximate weight W/4ft.Bucket
700 kg
Dimension of Packing
2300x1300x2000 ( 2 pcs)
Qty / 20 '
6 pcs

　

* Will vary depending upon tractor system capacity

** specifications are subject to change without prior notice

　

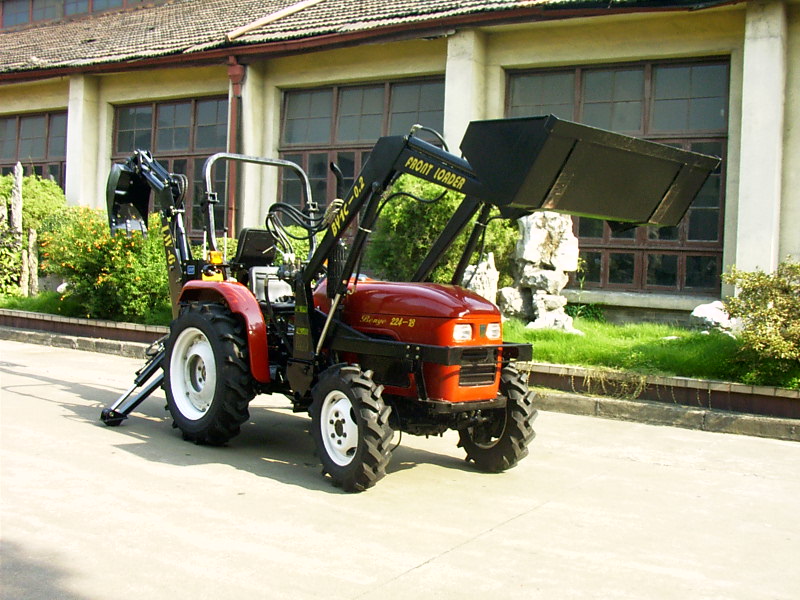

BY1C-0.2 Front Loader
　
Product Photo
  Product Information
Product Description: 　
Technical parameter :
Model
BY1C-0.2
Bucket Cubage
0.2 m3 / 7 ft3
Bucket Width
1500 mm / 60"
*Lift capacity to Full Height
500kg
Max . lift height ( A )
2400 mm / 94"
Clearance W / Bucket dumped ( B )
1900 mm / 75''
Reach at max height ( C )
400 mm / 16"
Max. Dump Angle (D)
55＜
Reach W/ bucket on Ground ( E )
1300mm / 51"
Bucket rollback ( F )
17＜
Overall Height in Carry Position (H)
1500mm / 59"
Distance of Uninstall
385 mm / 15.2"
Raising time
9 s
Low time
7 s
Bucket dump time
6 s
Bucket Rollback time
4 s
Pressure Unlocking for safely Valve
15.68 Mpa
Approximate weight W/4ft.Bucket
320 kg / 711 lbs
Dimension of Packing
　
Qty / 20 ' 　

　

* Will vary depending upon tractor system capacity

** specifications are subject to change without prior notice

　

　

All other tractors and implements 　

Ask us
