China Best Products Wind turbine generators

HS series horizontal wind turbine generators up to 50kw with CE

1kw 2kw 5kw 10kw 200w 300w 500w
500w 300kw and 3kw 3kw packing 3kw packing 3kw tower 3kw inverter 3kw controller
5kw 10kw 10kw
inverter inverter inverter inverter 300w roof 300w roof 300w in the box

(ISO9001:2000, ISO9002, and CE certified for the generators, with tower, off grid controller, and off grid inverter, no battery) retail price in US dollar, ship to warehouse on our list

We have 3kw, 5kw with pitch control, 10kw operating demo in Essex California, please call 519-496-3078 for details

30kw to 100kw off grid system by custom order, please ask us for details, 1-519-496-3078

Model rated power/rotor RPM/Blade diameter/battery bank DC input inverter AC output tower(m/ft) recommended battery bank (not included) off-grid single phase system (USD) weight(kg/lbs) packing(m3) units in 20ft/40ft container off-grid inverter(included)(USD) guide wire tower(included)(USD) upgrade to monopole upgrade to 3 phase inverter upgrade to Windy Boy grid tied inverter(USD) add extra set of  blades(USD)
    110V, 240V 60Hz/220V,380V 50Hz                   2,600
HR300 300W/650rpm/1.5m/24V roof no tower 12V 150AH x 2 1,456 24/53 0.14 180/260 46 N/A   144

HS500 500W/400rpm/2.5m/24V 6/20 12V 150AH x 3 1,794 494/1087 1.01 26/54 60 47 1,083 144
HS1K 1KW/400rpm/2.7m/48V 6/20 12V 200AH x 4 2,169 527/1160 1.08 25/52 283 200 1,083 119
HS2K 2KW/400rpm/3.2m/120V 9/30 12V 100AH x 20 2,990 572/1259 1.23 21/43 533 308 1,083 3,000 281
HS3K 3KW/220rpm/4.5m/240V 9/30 12V 200AH x 20 10,546 2026/4458 4.62 6/13 286 357 2,700 3,425 812
HS5K 5KW/200rpm/6.4m/240V 220/380V 50/60Hz 12/40 12V 300AH x 20 11,975 2129/4684 5.23 5/11 1,246 714 2,700 3,000 5,750 930
HA5K 5KW pitch/300rpm/5.2m/240V 8/26 12V 200AH x 20 11,933 1200/2640 6.6 5/10 1,911 1,365 monopole   5,750
HS10K 10KW/180rpm/8m/240V 12/40 12V 400AH x 20 20,639 2263/4979 5.49 4/9 2,833 3,750 tilt 3,900 3,920 5,750 x 2 1,386
HA10K   10KW pitch/7.2m/400V 18/60   12V 400AH X 30   29,618   1500/3300 7.5   3,740   6,790 monopole     5.750 x 2
HS20K 20KW/90rpm/10m/360V 18/60 12V 400AH x 30 37,241 4907/10796 14.91 2/4 5,000 7,458 tilt 8,070 5,833 5,750 x 4 2,199
HS30K 30KW/75rpm/12m/360V 18/60 12V 400AH x 45 48,873 11095/24409 17 6,700 7,458 tilt 8,070 7,500 5,750 x 5 3,239
HZ50K 50KW/85rpm/13m/540V 20/66 12V 400AH x 90 216,505 15175/33385 84   60,000 15,900(monopole)
HZ100K   100KW/65rpm/20m/540V 30/100   on grid only   466,066     168   258,400 on grid   37,790(monopole)

hydraulic/tilt tower prices for upgrade, customs charge from US$650 if order without wind turbine,

8m/27ft 3 sections 344kg/757 lbs, 0.75cbm US$940, for up to 2kw turbines, hydraulic pump 99kgs/218lbs, 0.13 cbm, US$570

12m/40ft 3 sections 2051 kgs/4513 lbs, 4 cbm US$4,100 for up to 10kw turbines, hydraulic pump 16Mpa or 2320 psi 0.46 cbm 220kgs/484lbs US$2,150

16m/50ft tilt tower 5.4 cbm, 1771kgs/3900lbs, US$7,725, hydraulic system 1.47cbm 938kgs/2064lbs, US$2,562

18m/60ft tilt tower 17.07cbm, 3500kgs/7700lbs for 20kw,  US$11,630, hydraulic pump 0.16 cbm 169kgs/372lbs, US$820

spec video of installation for hydraulic tower in mpeg format

battery charger for 10kw wind turbine 240Vdc battery bank $4,500

40kw EPA Perkins engine open diesel generator $16,186, 48kw $16300, 56kw $16,500, 68kw 16,750, 72kw $20844, 80kw $21373, 91kw $21836, 108kw $21962

anemoscope US$560, anemograph US$1,550 for 7420 logs

30% (minimum US$1000) deposit for single unit, and the balance must be paid off before warehouse pick up for customers in the states and Canada.

New 300w roof model 60 db only for your roof mini wind farm, HR300 $380/unit FOB China for bulk order, $1170 per unit for retail.

Spec and packing

spec for HS series

shipping packing for HS series

temperature -40 to 60 deg C or -40 to 140 deg F

Wind Boy UL listed grid tied inverters for up to 6kw

solar/wind hybrid system 1.5kw unit, 500w solar panels $2500, 1kw wind turbine $2217, WS482K 2 in 1 controller $700, off grid inverter SN482K $1380 Total system cost (no batteries) $6797

Windy boy series UL(E210376)/CE/G77/G83/1/DK5950/AS4777/TUV listed grid tied 120/240 Vac inverter, WB1800U 1.8kw, WB2500U 2.5kw, WB3800U 3.8kw, WB6000U 6kw, for 10kw and 20kw, you can couple two or more WB6000U inverters or build a mini wind farm.  The wind turbine/controller/Windy Boy inverter has to be set up/programmed to get the most yields.

Tell us, what you need for your system,

pay less bill or for emergency?

120 Vac or 240 Vac?

with tower or without tower?

with inverter or without inverter?

single phase or three phase? 380Vac or 400 Vac

grid tied or stand alone? If it is grid tied, please fax us the grid tied policy from your power company, our fax # 1-519-621-0694

What is your location? What kind of certificates? CE? UL? CSA? G83/1?

Usually we have 200w to 20kw generators in stock in Shanghai China, and ship out in 20 days after receiving your payments. We clear customs for USA, Canada.  GST base on the prices for customers in Canada.

We have grid tied Chinese inverters for 110/220Vac, with CE for up to 100kw, off grid inverter up to 50kva.

If you need a 5kw wind turbine with WB6000U grid tied inverter, your cost for equipments will be,

HS5k 5kw $11,975

WB6000U inverter $6,000

total: $17,975

Please call your utility company before you order a grid tied system, we can help with your application.

manual for Windy Boy 1800U, 2500U, 6000U grid tied inverters in PDF, Windy Boy grid tied system connection diagram in PDF, three phase grid tired connection in PDF, data sheet in pdf

spec for 1kw 48vdc to 220vac inverter, spec for 2k to 3k 240VDC to 220VAC inverter, spec for maton 5-10k inverter

spec for 200w to 2kw controller spec for 3kw to 20kw controller spec for new 3kw to 20kw controller

Installation

For all HS models in pdf.

installation word file 300w roof 1kw 2kw 5kw    10kw   2WB 20kw  swf up to 5000w 5000w and up

Warranty

6 month parts warranty for controller and inverter, 2 years parts warranty for the generator/tower.

Make your own tower, please make your adaptor to our generator. HS5k flange, HS10k flange, HS20k flange

VM series vertical wind generator with CE up to 1MW

(with controller, no tower, off-grid inverter, no battery) retail price in US dollar, ship to warehouse on our list with extra cost

Model Rated power controller output Vdc start up/rated/max wind speed (m/s) rotor diameter/height (m) price in USD FOB China
VM1.6K 1.6KW 48 1.8/10/63 2/2 6,902
VM3.2K 3.2KW 48 1.8/10/63 3/3.5 13,666
VM6K 6KW 48/216 1.8/10/63 4/4 25,367
VM12K 12KW 216 1.8/11/63 5.2/5.2 49,719
VM30K 30KW 384 1.8/11/63 9/8.5 121,814
VM60K 60KW 384 1.8/11/63 11/10.5 219,265
VM120K 120KW 384 1.8/12/63 14/13 350,824
VM360K 360KW 400 1.8/12/63 24/24 841,976
VM540K 540KW 400 1.8/12/63 31/31 1,158,300
VM720K 720KW 400 1.8/12/63 38/38 1,372,800
VM1080K 1080KW 400 1.8/12/63 46.5/46.5 1,825,200

VM50, VM200 and VM300 are for street lamp

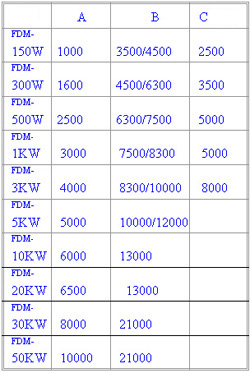

A is diameter in mm

B is tower height in mm

C is the guy radius in mm, independent tower for 10kw to 50kw

all the towers for VM series are optional, not included in the prices, the standard tower height is 7m, optional 12m or 15m for models from 1kw to 50kw

the standard controller is 172-350v

the standard inverter is 220v/110v single phase, optional 380v three phase

lead time 50 days estimated for 10kw and less, or 90 days for 15kw and up

spec controller spec

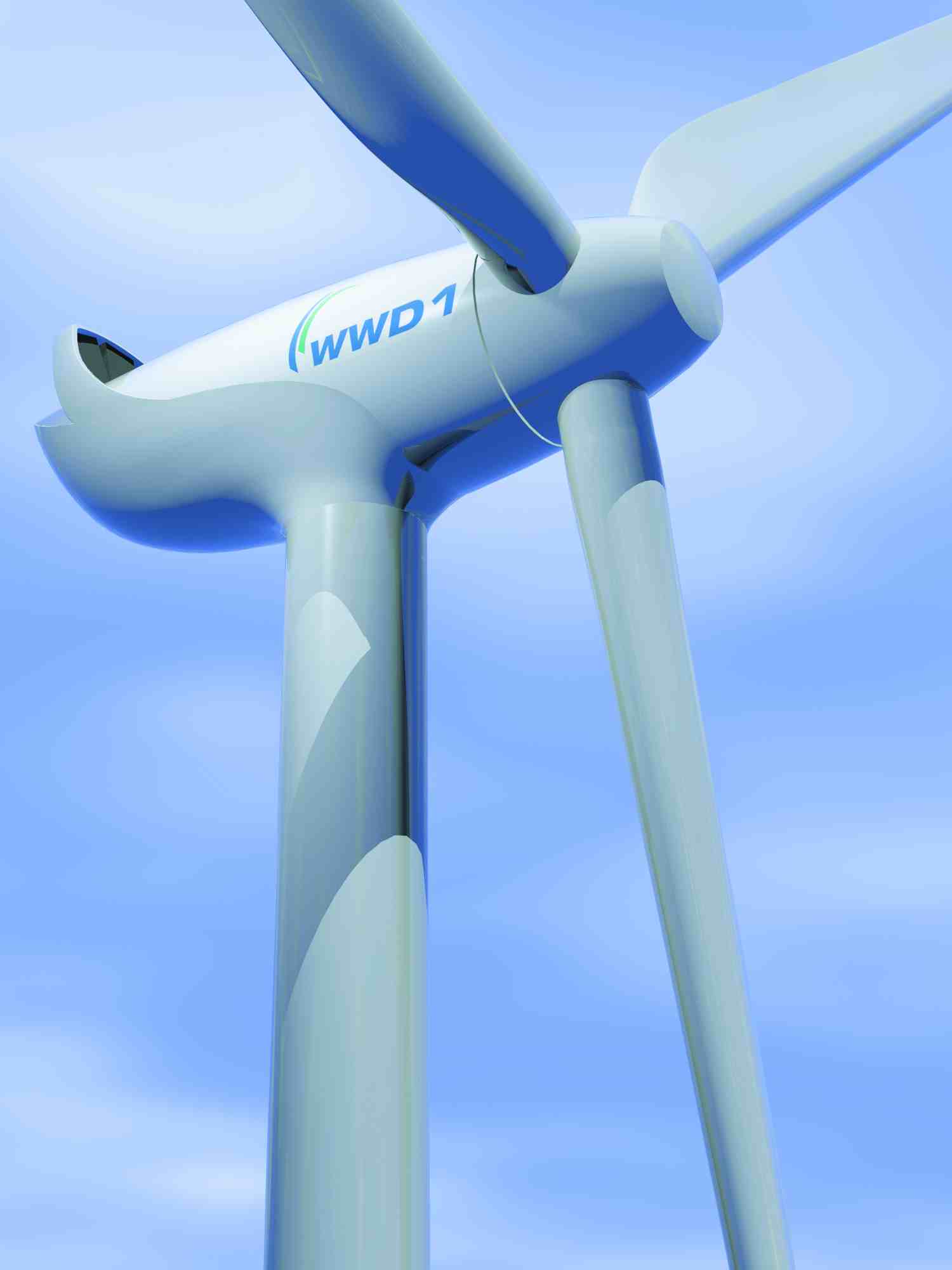

HF series large scale wind turbine for land and off shore 750KW to 3MW

By custom design only, please provide your desired capacity, policy of your power company, environment regulations from your area, size of your wind farm, location, height (hypsometric map), wind speed data for one year, temperature,  geological data, aerial photography map of the area, and all the related information.

lead time 6 month estimated

General  HH1M HM1.5M HX2M direct driven HR3M offshore HR3M onshore
Rated power 1000 kW 1500 kw 2000 kw 3000 kW
Power control blade stall Pitch Pitch Pitch
Type 3 blades, up-wind 3 blades, up-wind 3 blades, up-wind 3 blades, up-wind

Cut-in wind speed 3,5 m/s 3 m/s 3 m/s 3.5 m/s
Rated wind speed 14 m/s 10.5 m /s 13 m/s 13 m/s 12.5 m/s
Cut-out wind speed 25 m/s 15 m/s 25 m/s 25 m/s
Design maximum 59,5 m/s 59.5 m/s 70 m/s 70 m/s 59.5 m/s
Classification IEC II A IEC II IEC I-B TC I A TC II A
Operating temperature   -30 to 40   -30 to 40ºC
Rotor diameter 55 m 82.7 m 70.65 m 91.6 m 101.19 m

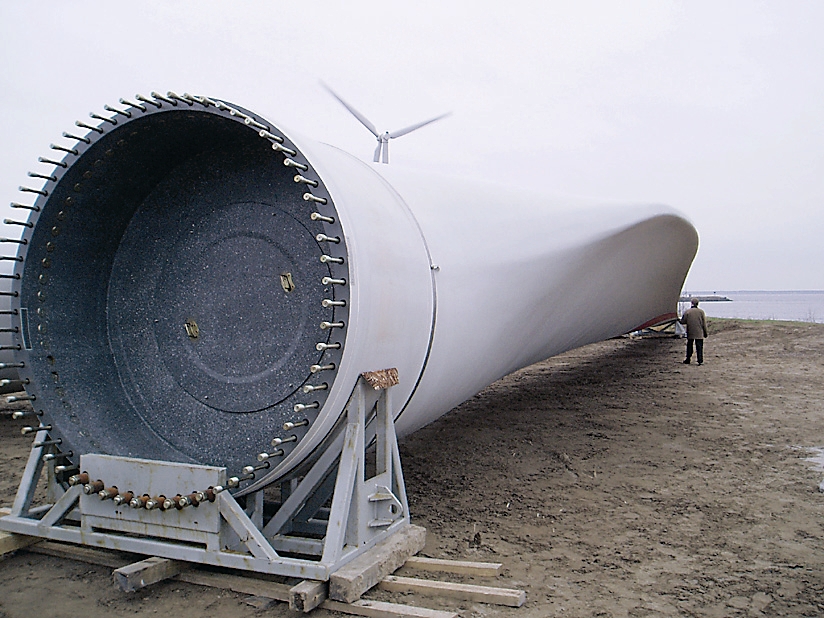

Wind turbine blades up to 3MW

Wind turbine generator heads from 600kw to 1.5MW

Model Capacity
YJ600 600KW
YJ660 660KW
YJ750 750KW
YJ1520 1520KW
YJ1560 1560KW

Windmill

grid tied inverter

CE certified for up to 100kw, in US dollar FOB Shanghai

Model Wind turbine Capacity FOB Shanghai

unit price in USD

 Input Output Frequency
WG1.5KTL 1KW $2,070 70-450 Vdc 200-260 Vac 50Hz
WG2K5TL 2KW $3,120
WG3K 2KW $3,300 200-450 Vdc 200-260 Vac 50Hz
WG5K 3KW $5,480 200-450 Vdc 200-260 Vac 50Hz
WG10K 7.5KW $11,000 200-800 Vdc 280-460 Vac 50Hz or 60Hz
WG10k3

3 phase

 7.5kw $13,600
WG20K 15KW $22,000
WG20k3

3 phase

 15KW $24,770
WG30K 20KW $33,000
WG30K3

3 phase

 20KW $33,800 450-880 Vdc 280-460 Vac
WG50K3

3 phase

 25KW $64,600 400-850 Vdc 310-450 Vac
WG100K3

3 phase

 50KW call

 spec in pdf SG1.5-100 spec in pdf

always pick bigger inverters for wind generators

Please check our FAQ for how to choose your model of wind generator.

Solar panels

We have solar panels that works with the wind generators, 30% to 90% of the rated power of the wind generators, depends on the mean wind speed in your area.

EPS Emergency Power Supply

form 1kw to 500kw

S series 1kw to 100kw for lights

T series 2.2kw to 500kw single or three phase, elevator, fans, water pump, lights, air conditioner

M series 2.2kw to 500kw for motor loads, fire fighting equipments

D series 0.55, 1.1, 3, 5.5, 7.5, 11kw, for gates, water pump and small motors

Solar Heater with CE

wind speed in Canada

wind speed in USA

US 2.5% 85016100.--AC generators (alternators) of an output not exceeding 75 kVA--01/01/2002

85023100 wind powered generator 2.5% for USA

85016200.--AC generators (alternators) of an output exceeding 75 kVA but not exceeding 375 kVA--01/01/2004
85016300.--AC generators (alternators) of an output exceeding 375 kVA

Ask us
