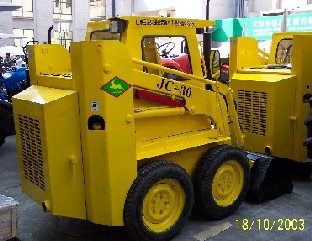

China Best Products JC Series Skid Steer Loader

JC series skid steer loader can work in all kinds of topographies due to its whole hydraulically driven system, fear-wheel drive and skid steer. The machine is excellent because of its double rising and falling

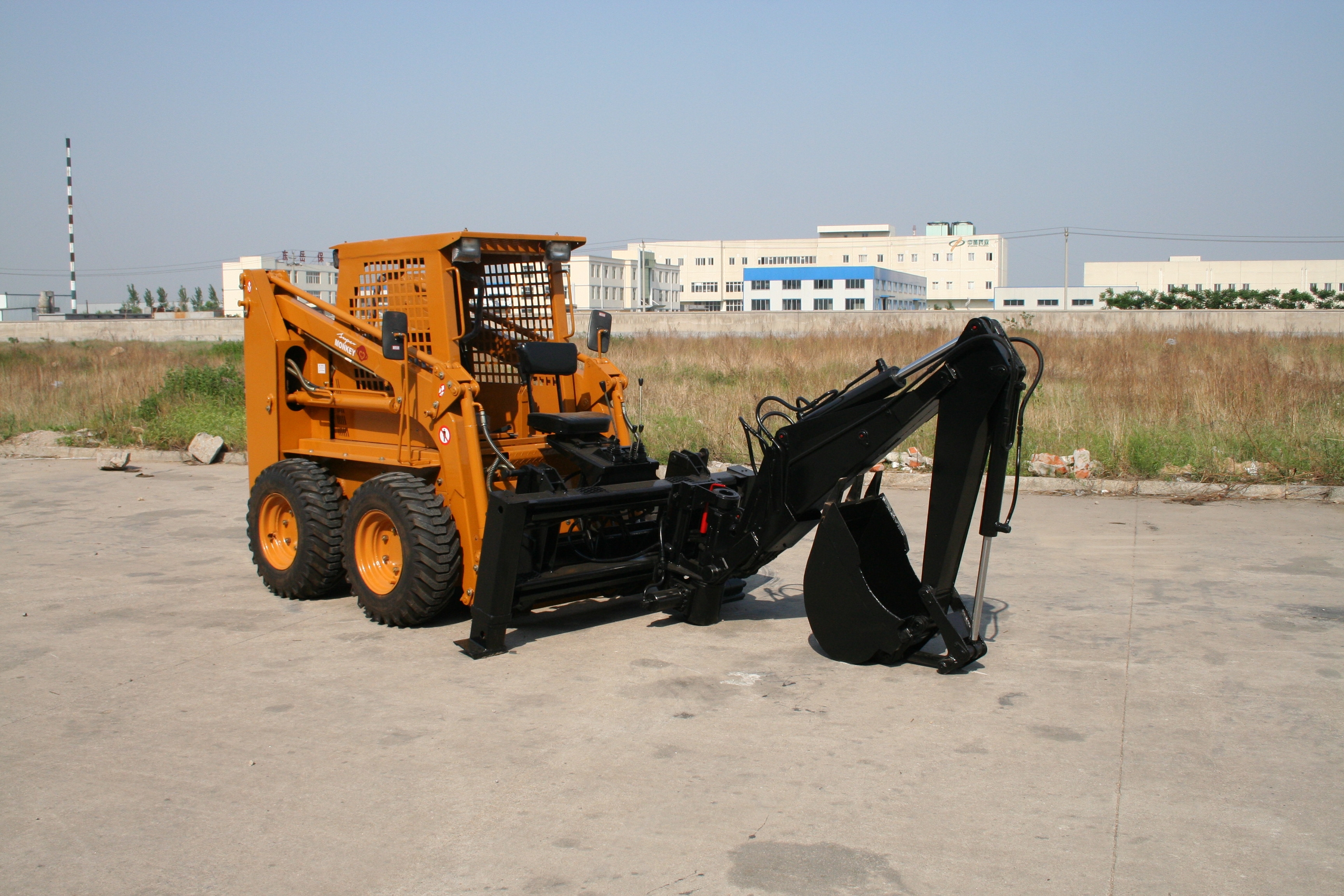

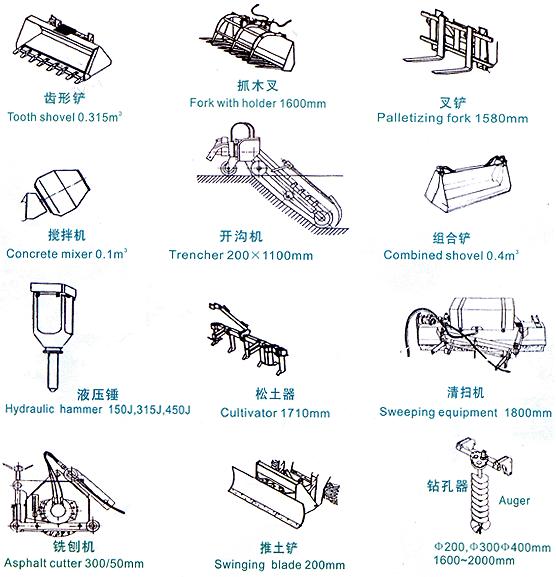

arms and quick, safe loading and unloading. After mounting of the operation equipment or attachments, it is possible to carry out various earthmoving and special jobs such as: loading, lifting, forking, swinging, digging, drilling, sweeping, milling, smashing, mixing and loosing. It can be used in wide range of industrial branches, mainly in those where it is not possible or advantageous to use a bigger machine due to small working space and economical reasons.

JC series Skid Steer Loader Technical Specification:

Mode	JC45	JC60
Engine (ps/rpm)	50hp/2650	60Hp
Transmission	full hydraulic, changeable, continuous transmission device	full hydraulic, changeable, continuous transmission device
Bucket Width (mm/inch)	1680/67.2	1680/67.2
Max. Lifting Height (mm/inch)	2900/116	2900/116
Max. Loading Weight (kg/lbs)	500/1100	750/1650
Turning Radius	skid steer	skid steer
Dimensions (LxWxH) (mm/inch)	3145x1680x1935 or 125.8x67.2x77.4	3185x1680x1935 or 127.4x67.2x77.4
Axle Distance (mm/inch)	991/39.64	991/39.64
Wheel Distance (mm/inch)	1430/57.2	1460/58.4
Max.Tilt Angle (o)	12	12
Max. Dump Angle (0)	44	46
Bucket Capacity (m3/cubic yard )	0.36-0.4 / 0.47-0.52	0.4-0.5 / 0.52-0.66
Weight (kg/lbs)	2290/5038	2800/6160
Fuel/Hyd. Oil Capacity (L)	45/45	45
Tyre	10.0/75-15.3	10.0/75-15.3
Max. Travel Speed (km/h or mph)	10/6.25	10/6.25
