China Best Products High Precision Vices/Vise

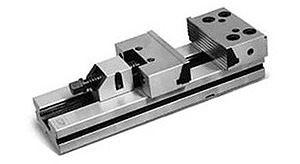

Precision Gerardi Vice/Vise

price for local pick up only, ask us for shipping.

phone 519-496-3078

fax 519-621-0694

email info@chinabestproducts.com

	Jaw						Price in USD dollar	special
Model	Width (mm)	Depth (mm)	Open (mm)	Length (mm)	Weight (Kg)	Code#	MSRP		In Stock
100	100	30	100	270	7	KG50-100	960
125	125	40	150	345	13	KG50-125	1170
150	150	50	200	420	26	KG50-150	1220	846	X
150	150	50	300	520	29	KG50-150L	1528
175	175	60	200	455	37	KG50-175	1878
			300	555	42	KG50-175L1	1910	1280	X
			400	655	47	KG50-175L2	2120	1390	X
			500	755	52	KG50-175L3	3220
200	200	65	200	495	64	KG50-200	2320
			300	595	69	KG50-200L1	2720	1745	X
			400	695	74	KG50-200L2	3130	1922	X
			500	795	79	KG50-200L3	3900
			600	895	84	KG50-200L4	5623
300	300	80	200	535	95	KG50-300	4557
			300	635	105	KG50-300L1	5017
			400	735	115	KG50-300L2	5450
			500	835	125	KG50-300L3	6042
			600	935	135	KG50-300L4	6715

All vices are made of high quality alloy steel
Case hardness HRC 58-60
Highest accuracy, within 0.02mm/.0008" (every sliding and coupling surface is ground, even the smallest components)
A vice of high dimensional precision with interchangeable parts, which can be connected to other vices doing the same job
All prices include main attachment
All dimension in metric
Lead time next business day for items in stock, or 60 to 90 days if not in stock
shipping to USA or Canada, $70 for the first 1-25kg, $3 for extra kg on 25kgs, fuel surcharge on top

Single Opening Modular Vices (Not in stock, by order only)

Jaw Width(mm)	Jaw Open(mm)	Length(mm)	Weight (kg)	Code#	Price
100	290	460	10	KG100-290	1219
125	320	520	17	KG100-320	1656
150	360	580	31	KG100-360	2032
150	460	680	34	KG100-460	2258
175	400	666	46	KG100-400	2423
175	500	766	51	KG100-500	2480
200	500	805	85	KG100-500W	4496
175	600	866	56	KG100-600	3476
200	600	905	92	KG100-600W	5075

Double Opening Modular Vices (Not in stock, by order only)

Jaw Width(mm)	Jaw Open(mm)	Length(mm)	Weight (kg)	Code#	Price
100	2 X 90	460	14	KG150-90	1845
125	2 X 100	520	21	KG150-100	2007
150	2 X 110	580	38	KG150-110	2489
150	2 X 160	680	42	KG150-160	2702
175	2 X 120	666	58	KG150-120	3523
175	2 X 170	766	63	KG150-170	2955
175	2 X 220	866	68	KG150-220	4103
200	2 X 150	805	95	KG150-150	6052
200	2 X 200	905	101	KG150-200	6705

US 8466.20.40 duty free

Canada 84662000 duty free
